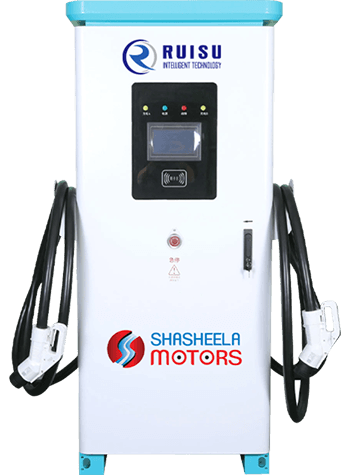

Ruisu Fast Charger FC80750
80 kw
| 80 KWH GB/T | FC80750 |
| Output Voltage | 200-1000Vdc |
| Max Output Current | 250A |
| Max Output Power | 80KW |
| AC Input Voltage | 380V/400VAC±15% |
| AC Input Connection | 3P+N+PE |
| Input Frequency | 50Hz±5% |
| Voltage Regulation Accuracy | 0.1% |
| Precision of Constant Current | 0.1% |
| Ripple Voltage | 0.1% |
| Efficiency | 96%(rated) |
| THD Power Factor | 0.99 |
| Input Power Factor | ≥0.99 |
| Input Current Harmonic | <5% |
| Fluctuation of Uniform Flow | ±1% |
| Protection | Input abnormal protection, output overvoltage/overcurrent, original edge current limiting, output short circuit protection |
| Communication | GB/T CCS(GB/T CCS/DC+S4/CCS2) |
| Noise | <55dB |
| Operating Temperature Range | -30°C~+50°C |
| Working Environment Humidity | Relative humidity 95% |
| Insulation Resistance | AC≥5MΩ |
| AC-GND | 1KV |
| Input to Output | 3KV |
| Resistance to High Voltage | 2500VAC, time 1min, leak current 10mA |
| DC-GND | 2500VAC, time 1min, leak current 10mA |
| Overall Dimension | 830*620*1967mm(gun excluded) |
| Weight | 300kg |
Description
- Fastest electric car charging option - provides up to 250 miles of range per hour, depending on the car and charging equipment.
- Can charge up to 80% typically in about 20 to 30 minutes.
- Used to facilitate longer distance driving or road trips or for a quick recharge.
